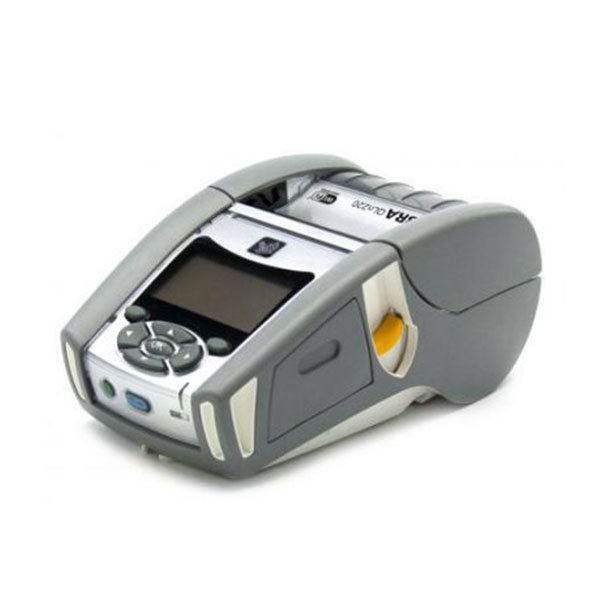

Direct thermal printing of up to 2″ wide this handy, mobile printer is ideal for patient record labeling, it is efficient with high quality printing and are both durable and easy to clean.

Standard features –

Includes disinfectant-ready plastics in a lighter healthcare color scheme

Direct thermal printing of barcodes, text and graphics

Apple iOS, Android, Windows Mobile and BlackBerry connectivity

Built in battery charger

Serial and USB ports

Belt clip for unobtrusive and convenient printing

Tear bar for easy media dispensing

400MHz 32-bit ARM processor

Black mark and gap media sensing using fixed centre position sensors

Specifications

Standard Features
Direct thermal printing of bar codes, text and graphics
CPCL and ZPL® programming languages
256 MB Flash supports downloadable programs, receipt formats, fonts, and graphics
2.45 AH removable Li-Ion smart battery
Built-in battery charger
Black mark and gap media sensing using fixed center position sensors
Easy to use peel and present mode
Label present sensor for issuing labels one at a time
Tear bar for easy receipt dispensing
Center-loading media locking for variable roll widths
“Clamshell” design for easy media loading
Management: Mirror, SNMP, Web server (with customizable HTML pages), Wavelink Avalanche®
Large, easy to read LCD control panel 240 x 128 pixels
LCD can be customized using WML (text and icons)
5-way navigation buttons, two software defined keys
Printer alerts on the display, help menus
Tolerance of multiple drops from 5″/1.52 m to concrete
IP43 dust- and water-resistance rating (IP54 with soft case)
Label odometer
Real-time clock

Resolution
203 dpi/8 dots per mm

Memory
128 MB RAM; 256 MB Flash (standard)

Print width
1.9″/48 mm

Print length
• Min: 0.5″/12.7 mm
• Max: 32″/813 mm

Print speed
Up to 4″/100 mm per second

Media sensors
Black mark and gap media sensing using fixed center position sensors;
Label present sensor for issuing labels one at a time

Operating Characteristics

Environment
Operating Temperature: -4° F/-20° C to 122° F/50° C
Storage/Transport Environment: -13° F/-25° C to 158° F/65° C
Operating Humidity: 10% to 90% non-condensing
Storage Humidity: 10% to 90% non-condensing

Agency approvals
Emissions: FCC Part 15, Subpart B, EN55022 Class-B, EN60950, EN55024 and VCCI class B
Susceptibility: EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, and EN61000-4-5
Safety: CE, UL, TUV, CSA

Media Characteristics

Media width
.63″/16 mm to 2.18″/55.4 mm

Media length
.5″/12.7mm to 32″/813mm

Maximum media roll size
2.2″/55.9 mm OD on a 0.75″/19 mm or 1.375″/34.9 mm

Media thickness
2.3 mil to 5.5 mil

Media types
Die-cut, roll-fed, receipt, linerless, black bar, black mark

Physical Characteristics
Width: 3.5″/89 mm
Height: 2.75″/70 mm
Depth: 6.5″/165 mm
Weight: 1.35 lbs/0.57 kg with battery

ZebraLink Solutions Software
ZebraDesigner™ Pro
ZebraDesigner
ZebraNet™ Bridge Enterprise
ZebraDesigner Driver
Zebra Setup Utility
Multiplatform Software Development Kit

Firmware
CPCL and ZPL programming languages
ZBI™ 2.x—Powerful programming language that lets printers run standalone applications, connect to peripherals, and much more

Fonts/Graphics/Symbologies

Fonts and character sets
Five resident scalable, rotatable fonts available from 12-48 pt.
Downloadable soft fonts
Optional international character sets

Bar code symbologies
Bar Code Ratios: 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1
Linear Bar Codes: Code 39, Code 93, UCC/EAN128, Code 128, Codabar (NW-7), Interleaved 2-of-5, UPC-A, UPC-E, 2 and 5 digit add-on, EAN-8, EAN-13, 2 and 5 digit add-on
2-Dimensional: PDF417, MicroPDF417, MaxiCode, QR Code, GS1 DataBar™ (RSS) family, Aztec, MSI/Plessey, FIM Postnet, Data Matrix, TLC39

Communication and Interface Capabilities
802.11b/g radio with support for:
WEP, TKIP, and AES encryption
EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP
802.1x
WPA and WPA2
802.11d and 802.11i
Bluetooth® 2.1 radio
Security modes 1 – 4
10/100 Ethernet support (via docking cradle)

Cabled Communications Specifications
USB 2.0 full-speed interface (12 Mbps)
Mini-B connector with optional strain relief
Serial interface: 14-pin RS-232C port for communication to terminal or other host up to 115.2 Kbps

Options and Accessories

Charging Options
Charge the battery inside the printer using:
AC adapter
Single cradle
Quad cradle
Charge the battery outside the printer using:
Smart charger
Quad charger

Optional Features and Accessories
Linerless printing (with silicone platen roller only)
ZBI 2.x—Powerful programming language that lets printers run standalone applications, connect to peripherals, and much more
Spare batteries
AC adapter
SC2 smart battery single charger
Quad battery charger
QLn-EC—single bay Ethernet and charging cradle
QLn-EC4—quad bay Ethernet and charging cradle, with internal switch and stacking port
Shoulder strap
Hand strap
Soft case (IP54 rating when used)
Serial and USB cables with strain relief
